SERIES SUPERCOMBINATA

BASIC

from Ø 22 mm to Ø 120 mm (0,87″ – 4,72″)

Power Supply

Power Rated @ 110v or 230v – 50/60Hz

Portable Line Boring & Rotary Welding

LINE BORING AND INTERNAL AND EXTERNAL OVERLAY WELDING, FLANGE FACING AND MACHINING OF SEATS FOR SEEGER RINGS, EXTERNAL TURNING

THE SERIES SUPERCOMBINATA

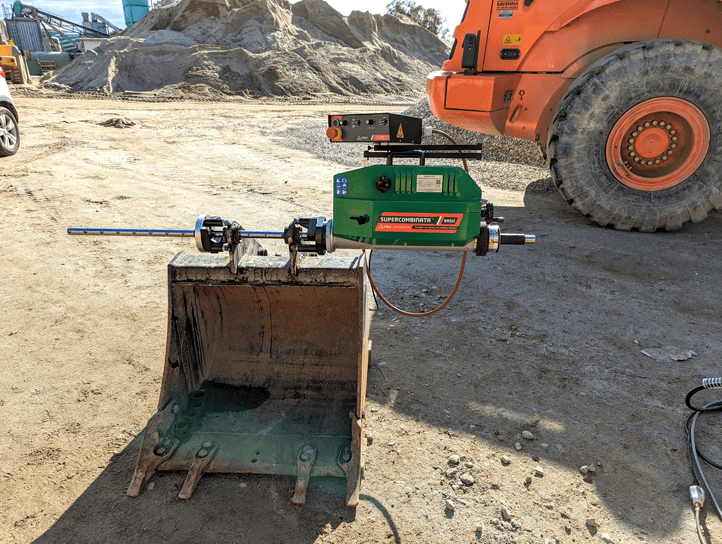

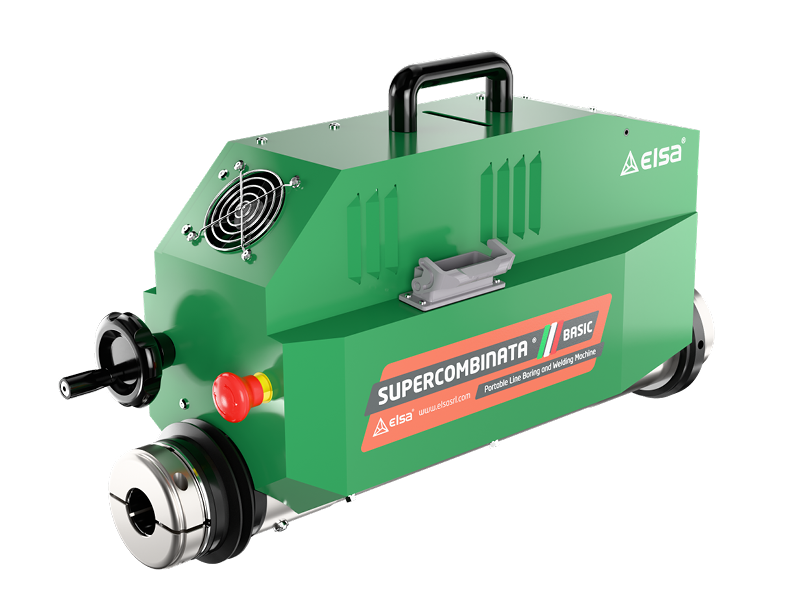

The Supercombinata BASIC is the entry-level solution of the Supercombinata series, with professional performance and at an affordable price. With its standard equipment, the machine is able to perform inline boring operations in the range from Ø 22 mm up to 120 mm, ideal for repairs in the field of earthmoving and for simple applications. With the BASIC 250 kits the machine can carry out inline boring and overlay welding up to Ø 250 mm and, with the other additional kits, external turning, facing of orthogonal planes and creation of seeger ring seats up to Ø 250 mm.

DOWNLOAD SPEC SHEET

DOWNLOAD ACCESSORY KITS

GET A QUOTE

Technical specifications

DIAMETERS

Boring Bar Diameter:	ø 20 x 1800 mm / ø 40 x 1500 mm
Line Boring From:	ø 22 – 120 mm
External Machining:	Extra kit
Internal Welding:	Extra kit
Flange Facing:	Extra kit

ROTATION MOTOR

AC Motor:	Single phase
Power Rated @:	1800 W
Torque Output @ Bar:	290 Nm @ 120 rpm
1° Gear:	Max 115 rpm (145 Nm)
2° Gear:	Max 400 rpm (45 Nm)

DIMENSIONS

Length:	680 mm
Width:	240 mm
Height:	380 mm
Machine Weight:	36 Kg

FEED MOTOR

Gear Motor:	DC
Power Rated @:	90W
Max Speed:	11 rpm
Feed System:	Electromechanical
Feed:	Manual/Automatic

LONGITUDINAL STROKE

Unlimited:

With 350 mm Pitch

ELECTRONIC CONTROL PANEL

Voltage:	110 or 230 V (50/60Hz)
Main switch:	Yes
Emergency Stop:	Yes
Feed Conrol:	RH/LH – Fwd/Rev
Rotation Control:	CW/CCW
Speed Control:	Rotation/Feed
Electrical Absorption:	2000 W

STANDARD EQUIPMENT

QTY 1

Main unit

01

QTY 1

Boring Machine Stand

02

QTY 1

Electronic Control Panel

03

QTY 1

Control Panel Holder

04

QTY 1

Cable Control Panel/Machine

05

QTY 1

Power Cable

06

QTY 1

Boring Bar ø 20×1800 mm

07

QTY 1

Boring Bar ø 40×1500 mm

08

QTY 1

Special Tool holder RH ø 10×20 mm

09

QTY 1

Tool Holder RH ø 10×30 mm

10

QTY 1

Tool holder LH ø 12×60 mm

11

QTY 1

Box of 10 Carbide Inserts

12

QTY 1

Main Bar Support

13

QTY 1

Additional Support

14

QTY 2

Bushing

15

QTY 2

Main Reduction Bushing

16

QTY 2

Additional Reduction Bushing

17

QTY 1

Rotation Reduction Bushing

18

QTY 1

Extension

19

QTY 2

Centring Bushing ø 20 mm

20

QTY 2

Centring Bushing ø 40 mm

21

QTY 6

Centring Brackets

22

QTY 6

Centring Bolts

23

QTY 1

Wrench

24

QTY 1

Screws and Bolts

25

Guaranteed Quality

2 Years Mechanical Warranty

LBW is confident in supplying quality products, hence offering our valued clients a manufacturer’s warranty of 2 years mechanical warranty and 1 year control panel warranty.
