THE SERIES SUPERCOMBINATA
SC2
from Ø 62 mm to Ø 250 mm (2,44″ – 9,84″)
Power Supply
Power Rated @ 110v or 230v – 50/60Hz
PORTABLE LINE BORING & ROTARY WELDING MACHINES
LINE BORING AND INTERNAL AND EXTERNAL OVERLAY WELDING, FLANGE FACING AND MACHINING OF SEATS FOR SEEGER RINGS, EXTERNAL TURNING
THE SERIES SUPERCOMBINATA

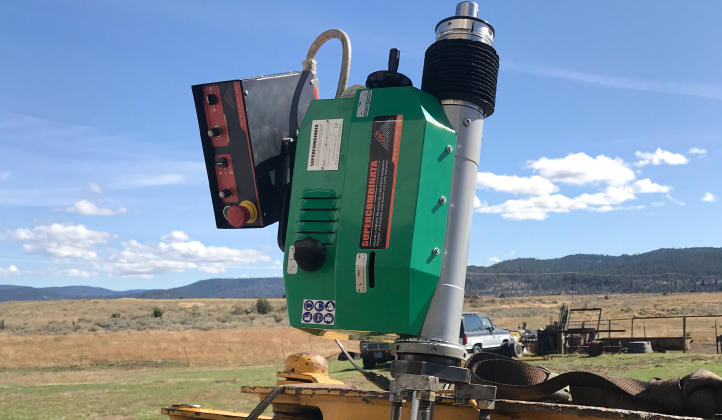

The Supercombinata SC2 Compact, thanks to its standard equipment, is suitable to perform internal line boring and internal overlay welding within a working range from Ø 62 mm to Ø 250 mm in very small spaces (also blind holes). By means of extra kits it is able to perform external turning, facing of orthogonal planes and creation of circlips grooves. With additional accessories, the Supercombinata can be adapted to many different needs of our customers.
Technical specifications
DIAMETERS
| Boring Bar Diameter: | ø 60 x 2200 mm |
| Line Boring From: | ø 62 – 250 mm |
| External Machining: | Extra kit |
| Internal Welding: | ø 42 – 250 mm |
| Flange Facing: | Extra kit |
ROTATION MOTOR
| AC Motor: | Single phase |
| Power Rated @: | 1800 W |
| Torque Output @ Bar: | 350 Nm @ 100 rpm |
| Transmission: | 2 Speed Gear Box |
| 1° Gear: | max 100 rpm (170 Nm) |
| 2° Gear: | max 340 rpm (50 Nm) |

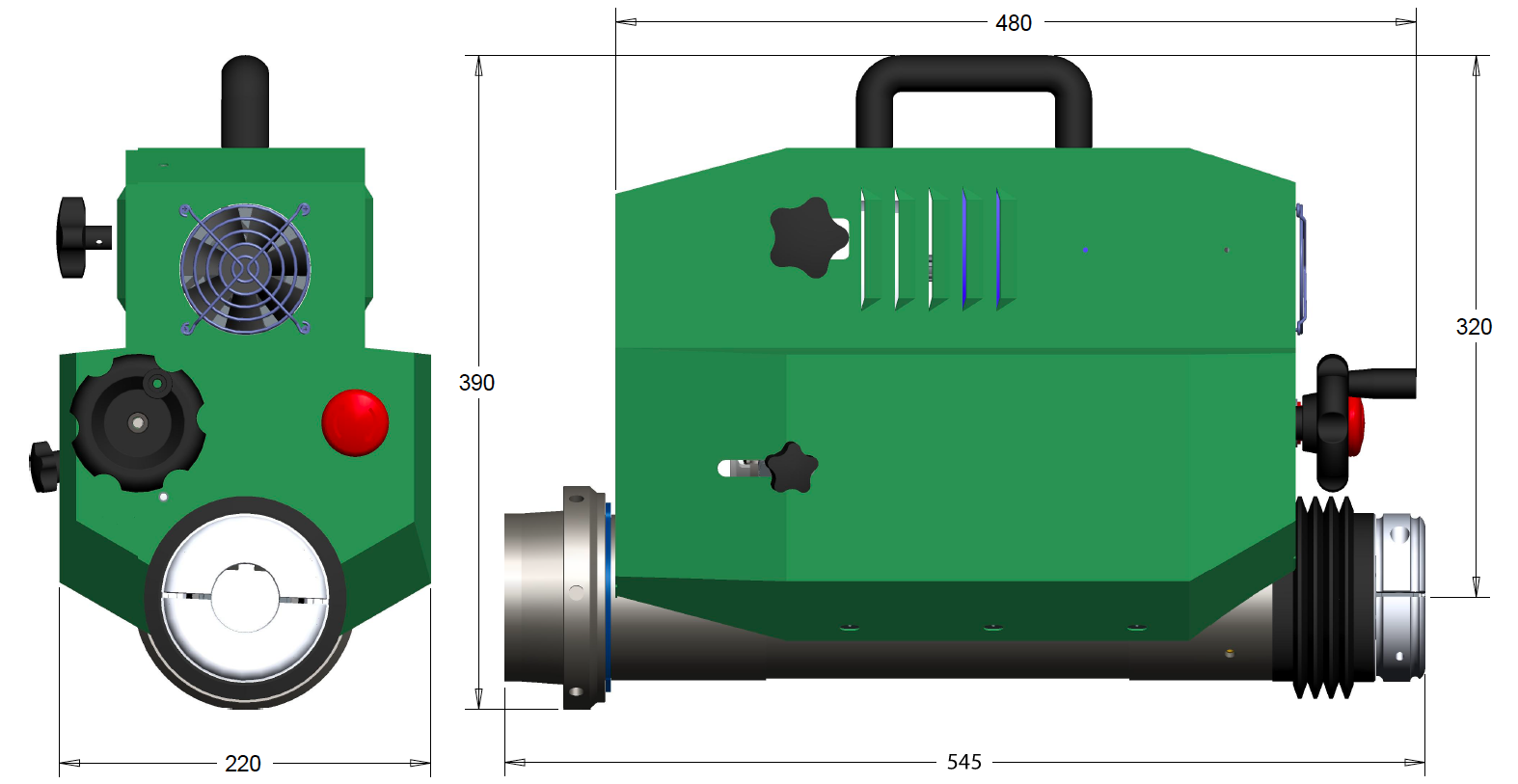

DIMENSIONS
| Length: | 545mm |
| Width: | 220 mm |
| Height: | 380 mm |
| Machine Weight: | 34 Kg |
FEED MOTOR
| Gear Motor: | DC |
| Power Rated @: | 45W |
| Max Speed: | 11 rpm |
| Feed System: | Electromechanical |
| Feed: | Manual/Automatic |
LONGITUDINAL STROKE
| Unlimited: | With 250 mm Pitch |
ELECTRONIC CONTROL PANEL
| Voltage: | 110 or 230 V (50/60Hz) |
| Main switch: | Yes |
| Emergency Stop: | Yes |
| Feed Conrol: | RH/LH – Fwd/Rev |
| Rotation Control: | CW/CCW |
| Speed Control: | Rotation/Feed |
| Electrical Absorption: | 2000 W |
WELDING TECHNOLOGY
| Spiral: | Continuous with variable speed |
| Welding Set: | Compatibile with any MIG/MAG Wirefeeder |
| Synchronous Welding: | A given feed rate calculates rotation speed. |
STANDARD EQUIPMENT
Guaranteed Quality
2 Years Mechanical Warranty
LBW is confident in supplying quality products, hence offering our valued clients a manufacturer’s warranty of 2 years mechanical warranty and 1 year control panel warranty.
EXTRA KITS
Our additional Extra Kits are designed to give great
versatility of use to the portable line boring machines.
In turn the kits offers our clients more scope out in the field.
BORING REDUCTION
Ø 22 – 160 mm (0,87″ – 6,30″)
EXTERNAL TURNING
Ø 60 – 300 mm (2,36” – 11,81”)
FLANGE FACING
ACCESSORIES
We offer a wide range of Accessories Kits, equipping the machine,
according your needs.
Part No. AE000644
Digital Control Panel Used on the following machines: SC1 / SC2 / SC3
Part No. AE000489
External Joint for Ø 30 mm Boring Bar Used on the following machines: EASY / EASY Compact / SC1 / SC2 / SC3
Part No. AE000487
External joint for boring bar Ø 40 mm. Used on the following machines:BASIC / EASY / EASY Compact / SC1
Part No. AE000441
External Joint for Ø 60 mm Boring Bar Used on the following machines: SC2 / SC2 Compact / SC3
Part No. AE000442
External Joint for Ø 60 mm Boring Bar Used on the following machines: SC2 / SC2 Compact / SC3
Part No. AE000490
Internal Joint for Ø 40 mm Boring Bar Used on the following machines: BASIC / EASY / EASY Compact / SC1
Part No. COE00035
Boring bar ø 40 x 1100 mm Used on the following machines: BASIC / EASY / EASY Compact
Part No. AE030015
CAM System Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. AE003018
Boring bar ø 40 x 1500 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1
Part No. AE003017
Boring bar ø 40 x 3000 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1
Part No. COE00018
Boring bar ø 20 x 1800 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. COE00019
Boring bar ø 30 x 1800 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. SG00208
Indexable Toolholder DX Ø 16x26 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. GC37SC
Internal Support Ø 200-300 MM Used on the following machines: BASIC / EASY / EASY Compact / SC1
Part No. SG00242
Centring Cones for Ø 40 mm shaft, Working Range Ø 50-130 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. SG00244
Centring Cones for Ø 40 mm shaft, Working Range Ø 120-180 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. SG00246
Centring Cones for Ø 40 mm shaft, Working Range Ø 170-220 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. SG00272
Centring Cones for Ø 20 mm shaft, Working Range Ø 25 - 40 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
Part No. SG00271
Centring Cones for Ø 30 mm shaft, Working Range Ø 35 - 70 mm Used on the following machines: BASIC / EASY / EASY Compact / SC1 / SC2 / SC2 Compact / SC3
