THE SERIES SUPERCOMBINATA

SC3

from Ø 62 mm to Ø 800 mm (2,44″ – 31,50″)

Power Supply

Power Rated @ 110v or 230v – 50/60Hz

PORTABLE LINE BORING & ROTARY WELDING MACHINES

LINE BORING AND INTERNAL AND EXTERNAL OVERLAY WELDING, FLANGE FACING AND MACHINING OF SEATS FOR SEEGER RINGS, EXTERNAL TURNING

THE SERIES SUPERCOMBINATA

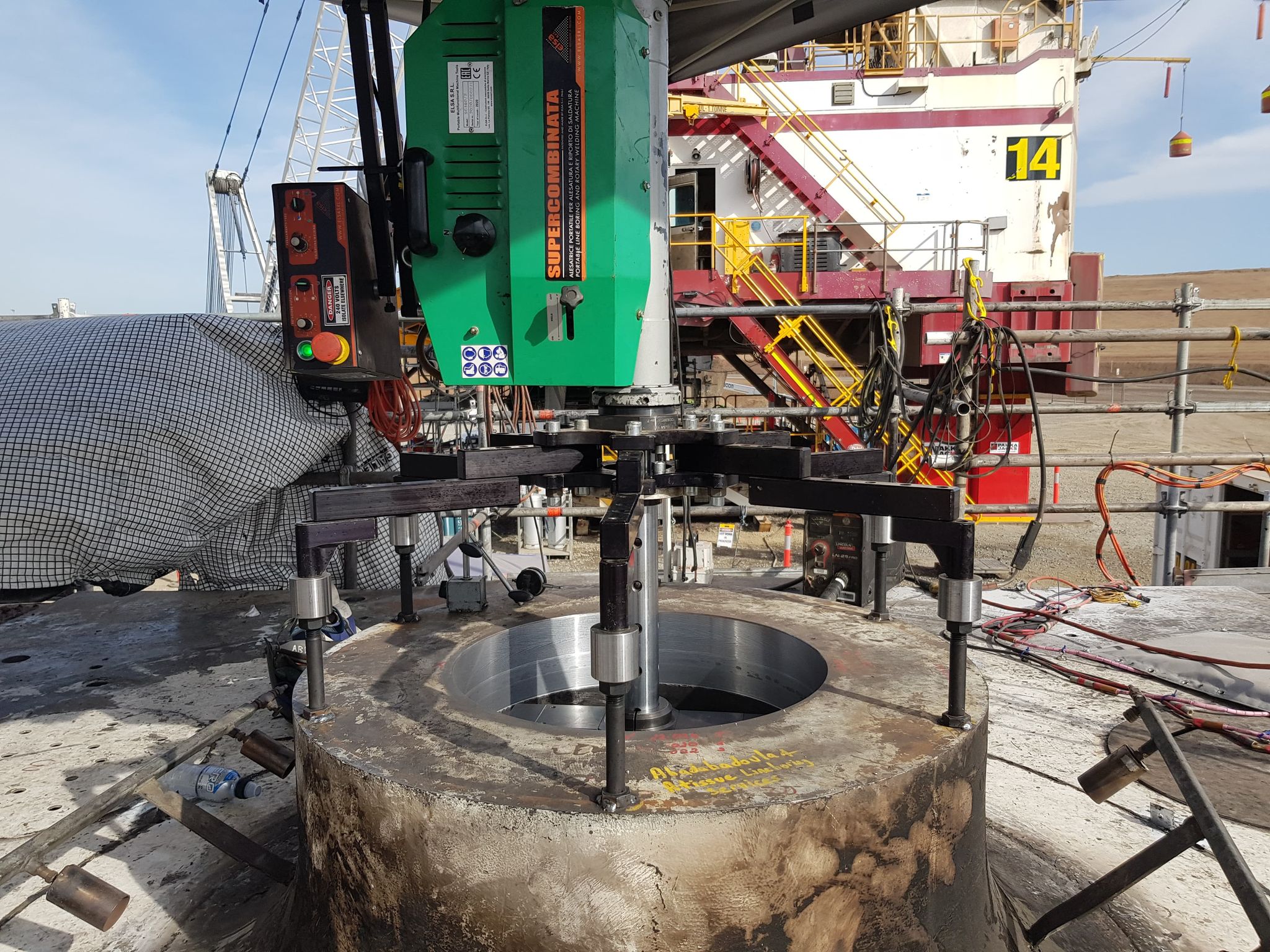

The Supercombinata SC3, with its standard equipment, is suitable to perform line boring and internal and external overlay welding within a working range from Ø 62 mm to Ø 800 mm (also blind holes). It’s suitable for drilling and tapping. By means of extra kits, it is suitable to perform external turning, facing of orthogonal planes and creation of circlips grooves, threading. With additional accessories, the Supercombinata can be adapted to many different needs of our customers. Available with a control panel for 230V or 110V power supply as well as in digital version (discover the differences).

Technical specifications

DIAMETERS



Boring Bar Diameter: ø 60 x 2200 mm
Line Boring From:  ø 62 – 800 mm
External Machining:  Extra kit
Internal Welding: ø 42 – 800 mm
External welding:
 ø 42 – 600 mm
Drilling: Optional Accessory
Tapping: Optional Accessory
Threading: Extra Kit
Flange Facing: Extra kit

ROTATION MOTOR

AC Motor: Single phase
Power Rated @:  2300 W
Torque Output @ Bar:  902 Nm @ 55 rpm
Transmission: 4 Speed Gear Box

1° speed: max 55 rpm (420 Nm)

2° speed: max 85 rpm (235 Nm)

3° speed: max 240 rpm (85 Nm)

4° speed: max 375 rpm (55 Nm)

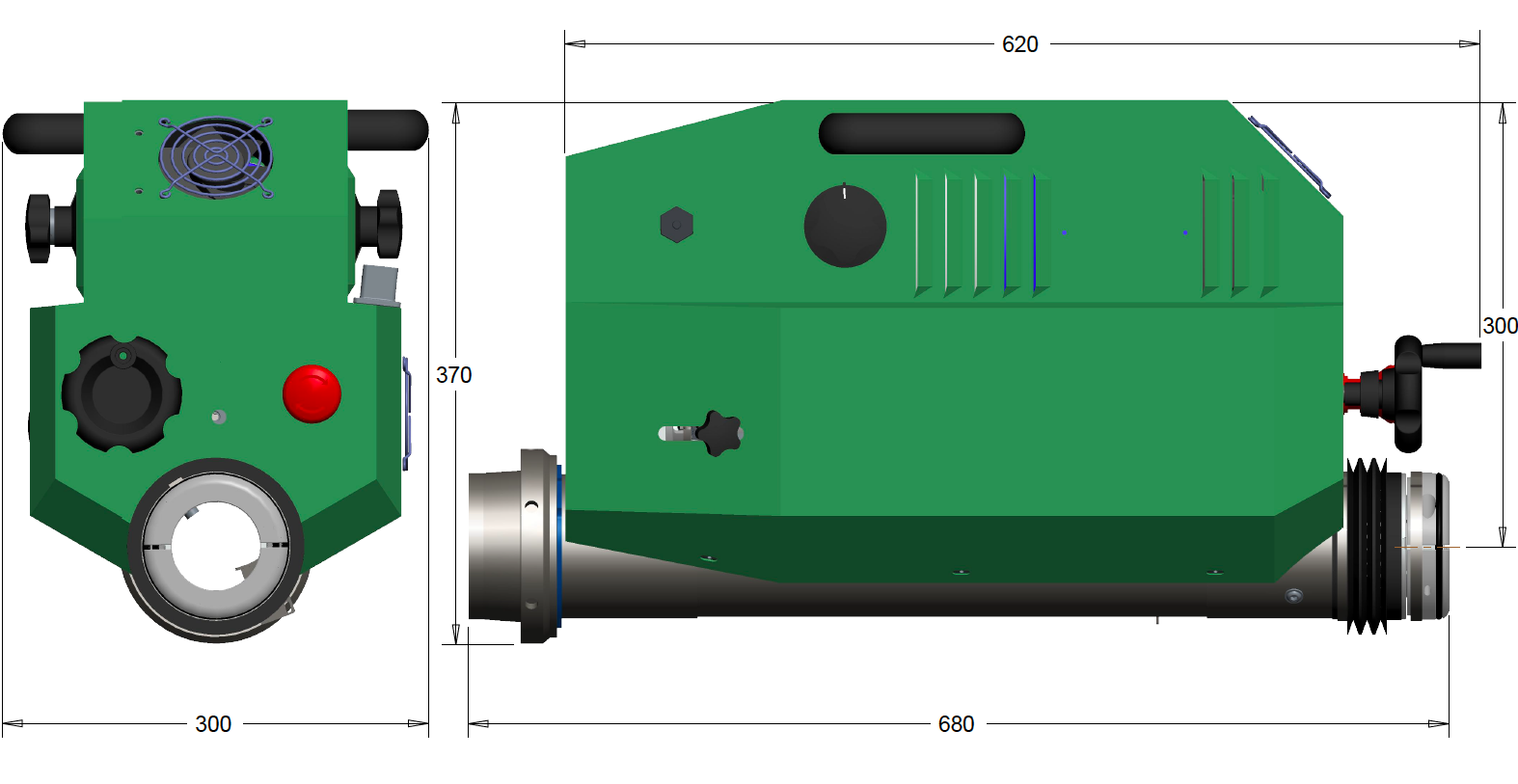

DIMENSIONS

Length: 680mm
Width: 300 mm
Height:  390 mm
Machine Weight:  39 Kg

FEED MOTOR

Gear Motor: DC
Power Rated @: 90W
Max Speed:   11 rpm
Feed System:  Electromechanical
Feed: Manual/Automatic

LONGITUDINAL STROKE

Unlimited: With 350 mm Pitch

ELECTRONIC CONTROL PANEL

Voltage: 110 or 230 V (50/60Hz)
Main switch: Yes
Emergency Stop:   Yes
Feed Conrol:  RH/LH – Fwd/Rev
Rotation Control: CW/CCW
Speed Control: Rotation/Feed
Electrical Absorption: 2000 W


WELDING TECHNOLOGY

Spiral: Continuous with variable speed
Welding Set: Compatibile with any MIG/MAG Wirefeeder
Synchronous Welding:   A given feed rate calculates rotation speed.

STANDARD EQUIPMENT

QTY 1

Main unit

01

QTY 1

Boring Machine Stand

02

QTY 1

Electronic Control Panel

03

QTY 1

Control Panel Holder

04

QTY 1

Cable Control Panel/Machine

05

QTY 1

Power Cable

06

QTY 1

Boring Bar ø 60×2200 mm

07

QTY 1

Boring bar extension 520 mm

08

QTY 2

Pivot

09

QTY 1

Tool holder for boring d. 120-250 mm

10

QTY 1

Tool holder for boring d. 250-800 mm

11

QTY 1

Tool holder LH ø 12×50 mm

12

QTY 1

 Special tool holder LH ø 12×60 mm

13

QTY 1

Tool holder LH ø 12×60 mm

14

QTY 1

Tool holder LH ø 12×80 mm

15

QTY 1

Tool holder RH ø 12×100 mm

16

QTY 1

CC08 Carbide Inserts – Box of 10

17

QTY 1

Adjusting plug for tool holder

18

QTY 2

Main Bearing Supports

19

QTY 2

Additional Bearing  Supports

20

QTY 18

Bracket for flanges 200 mm

21

QTY 18

Bracket for flanges 275 mm

22

QTY 4

Flanges support d. 250-800 mm

23

QTY 1

Telescopic shaft for welding

24

QTY 1

Reduction bushing for torch shaft

25

QTY 1

Reduction bushing for locking torch

26

QTY 5

Diffuser extension 35 mm

27

QTY 4

Diffusor Extension 100 mm

28

QTY 4

Short Gas Shrouds

29

QTY 4

Long Gas Shrouds

30

QTY 5

Short contact tip ø 0,8 mm wire

31

QTY 5

Long Welding tips ø 0.8 mm wire

32

QTY 1

O-Ring for Welding Shaft 100×5 mm

33

QTY 1

Torch head for external welding

34

QTY 1

Centring system d. 250-800 mm

35

QTY 1

Centring System for Through Holes

36

QTY 1

Centring System for Blind Holes

37

QTY 1

 Telescopic Gauge up to ø 800 mm

38

QTY 1

 Dial Gauge

39

QTY 1

Dial Gauge Support

40

QTY 1

Set of Wrenches

41

QTY 1

Screws and Bolts

42

Guaranteed Quality

2 Years Mechanical Warranty

LBW is confident in supplying quality products, hence offering our valued clients a manufacturer’s warranty of 2 years mechanical warranty and 1 year control panel warranty.

EXTRA KITS

Our additional Extra Kits are designed to give great
versatility of use to the portable line boring machines.
In turn the kits offers our clients more scope out in the field.

BORING REDUCTION

Ø 22 – 160 mm (0,87″ – 6,30″)

VIEW KIT

BIG DIAMETERS

Ø 400 – 1700 mm (15,75″- 66,93″)

VIEW KIT

EXTERNAL TURNING

Ø 60 – 300 mm (2,36” – 11,81”)

VIEW KIT

FLANGE FACING

Ø 48 – 800 mm (1,89″- 31,50″)

VIEW KIT

INTERNAL THREADING

Ø 120 – 350 mm (4,72″ – 13,78″)

VIEW KIT
